商品の詳細:
|

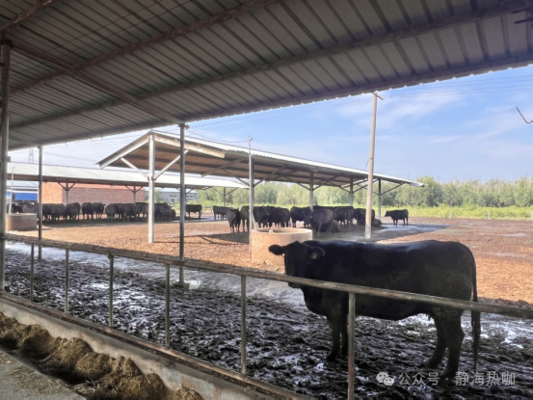

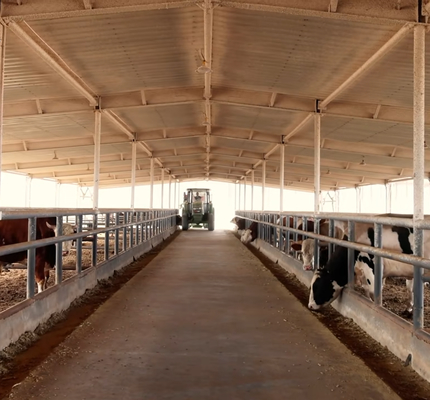

| タイプ: | 鋼構造牛小屋 | 適用する: | 乳牛 /牛肉牛 /肥育場牛 /繁殖ストック |
|---|---|---|---|
| 典型的な顧客タイプ: | 家族の牧場 /商業酪農場 /牛肉の肥育場 | スチールグレード: | Q235B、Q355Bまたは同等 |
| 表面処理: | 塗装またはホットディップの亜鉛メッキ | 接続方法: | 高強度ボルトアセンブリ - オンサイト溶接、高速で安全な設置なし |
| ハイライト: | Livestock Housing Solution Cow Shed,Galvanized Steel Cow Shed,Dairy Beef Cattle Cow Shed |
||
| Item name | Specification | Material Parameter | Technical Treatment |
|---|---|---|---|
| Column | H shape, Box, steel pipe, Hot-rolled sheet | Q235B, Q355B | Paint or Hot-dip galvanized |
| Beam | H shape, steel Truss, Hot-rolled sheet | Q235B, Q355B | Paint or Hot-dip galvanized |
| Bracing | Tie rod, Casing pipe, Angle steel | Q235B, Q355B | |
| Purling | C / Z shape, purling Thickness: 1.8mm~3.0mm | Q235B, Q355B | Hot-dip galvanized |
| Wall & roof panel | EPS / PU / PIR / Glass wool / Rock wool Sandwich panel or Single plate. | Steel T=0.426~0.8mm, insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding or rolling door | Steel or Aluminum sheet, T=1.0~1.5mm | Paint or Hot-dip galvanized |
| Window | Alloy-Glass, Aluminium alloy-shutter, Louvers | T=1.0~2.0mm | Alloy |
| Skylighting panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion: 2.2x10-5/cm/cm/℃ | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel, stainless steel, PC | Paint or Hot-dip galvanized, 304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot-dip galvanized, 304 |
| Downpipe | PVC / Color steel pipe T=0.5mm | Φ110, 160, 200 | Paint |
| Bolt | Ordinary, high strength | 10.9S, 4.8s | Hot-dip galvanized |
| Anchor bolt | Steel rod M24, M27 M30 | Q235B |
| Professional design | We design the drawing as your requirement or calculate the steel quantity based on your drawing. |
| Skilled fabrication | We make the independent production schedule to each project. |
| One-stop service | We have completed lots such kinds of projects, we could provide the integrated proposal for your project. |
| Professional QC | We guarantee the production and service as your request. |
| After sales service | If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us, we will try to provide the service as well as we can. |
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | Wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | Snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | Anti-earthquake | _____level |
| 6 | Brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | Thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | Livestock quantity | The quantity of cattle / cow |
